Application

Any Harley Davidson models with 7″ headlight,such as
2012,2013,2014,2015, 2016 Harley Davidson FLD
1994-2013 Touring(except Road Glide,Street Glide)
1994-later Softail models equipped with Freight Train Headlamp Nacelle Kit
2006-2010 FLHTCUSE models require separate purchase of wiring Harness P/N 71628-04
If your model is 2014 Street Glide, you need an adapter plug to install(Asin: B018HSCD1K)
(Minor drilling may be required for some models)

Jeep Wrangler TJ (1997-2006)
Jeep Wrangler TJ Unlimited / LJ (2003-2006)
Jeep Wrangler JK 2 Door (2007-2016)
Jeep Wrangler JK 4 Door Unlimited (2007-2016)
Land Rover Defender 90 & 110
AM General Hummer (1992~2001)
Hummer H1&H2 (2003~2009)

Features:
Plug & Play, LED Ballast, LED Canbus & H4/H13 Adapter Included
Low Power Consumption, Life Span: 30000Hrs
Low Voltage Protection, High precision Constant Current Driver Chip
Built in Internal Fan and Integrated Cooling system

Specification
Simple installation – Plug & Play & LED Canbus & H4/H13 Adapter or less
Type: Jeep LED Headlight
Watt: 40W
Input: 12-24V DC
Operating Voltage: 10-30V DC
Luminous Flux: 2500LM@high beam, 1500LM@low beam
Connector: H4/H13 (Ground and High Beam)
Housing Material: Aluminum
Lens Pattern:High & Low Beam

Notice:
7″ LED headlight and H4 to H13 adapter only, mounting ring or hardware like screws, washer, other adapters not included.

Package included 1pcs 7″ headlight+ 1pcs H4 to H13 adapters

Product Features

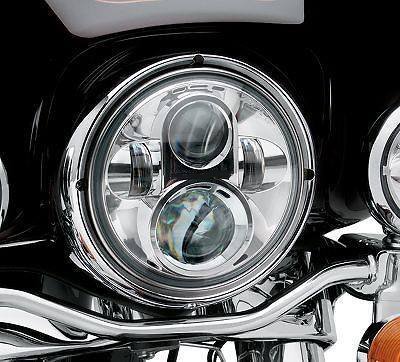

  • Aftermarket 7″ Round Harley LED headlight, high performance Hi-Lo beam UV-resistant,innovative 4D round+ D-shaped projector lens
  • Superior light output but soft light,efficiently relieve driving fatigue Full aluminum housing for extra durability while doubling as heat sink Solid-state, can withstand vibration & shock with ease Directly replace stock 7″ round seal-beam headlight
  • Power: 40W; Headlight Type: 7″ round, Black inner bezel Input Voltage: DC12V~24V; Current Draw: 3A@12V,1.5A 24V LED Quantity: 4(Pure White 6000K) Effective Luminous Flux: 2500LM@high beam,1500LM@low beam; H4 adapter harness & H13 adapter harness included; Waterproof Rate: IP67; Material: black die-cast aluminum housing,clear PC lens; Size(D*H): approx 178mm(7″)*98mm(3-7/8″); Two modes: high beam-all LEDs on,Low beam
  • Fit: Any Harley Davidson models with 7″ headlamp, eg: 2012,2013,2014,2015, 2016 FLD,1994-2013 Touring(except Road Glide,Street Glide),2009-2013 Trike models, 1994-later Softail models equipped with Freight Train Headlamp Nacelle Kit 2006-2010 FLHTCUSE models require separate purchase of wiring Harness P/N 71628-04 If your model is 2014+ Street Glide, you need an adapter plug to install(Asin: B018HSCD1K)
  • Package included: 1pcs Chrome 7 inch LED headlight+ 1pcs H4 to H13 adapters
