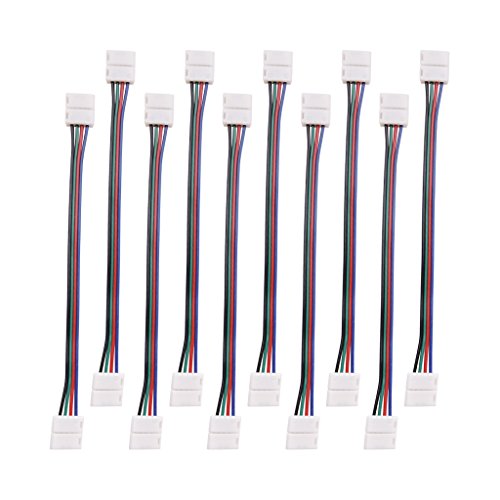

AspenTek solder-less connector is an idea way to link two pieces of LED strip lights together. The connectors allow you to link LED strip light together and save the time consuming task of soldering. The plastic connectors on either end of the wire simply open up and allow 5050/3528 RGB color LED strip to be inserted, once closed they provide a strong connection which will provide power to the LED strips.

Intended use: It fits 10mm 3528 or 5050 RGB LED strip. NOT for 8mm led strip light

Installation Instructions:
• Ensure the four solder joints on circuit board are clean
• Open the white clasp of the connector
• Insert the LED light strip into the clasp and fix it under the prongs – please pay attention to the positive electrode. The black wire is the corresponding positive(“+”).
• Close the clasp well to make a solid connection

Warm Tips:
1)This connector is mainly used for conductive connection. If you want fixed connection, please do the soldering.
2) If you’re finding that your PCB board is too thin to be fixed firmly by the connector box, you can affix a bit of tape to make it thick enough for a firm connection.
3)To connect waterproof led strip light, it will add an additional job for you. Please clean up the the rubber to make sure the soldering points of the light is clean, then insert it into the connection box, thus the connector can connect the led strip light firmly.

Package content:
10 x RGB LED Strip light connector adapter

Service Information:
•In terms of product details or questions, please first contact our customer service center by email.
•Warranty: All products enjoy 12 months warranty and 30day full money refund.

Product Features

• Non stripping LED Strip Connector for 5050 rgb led strip light or 3528 rgb led light stirp 10mm width
• 10mm wide;15cm/6 Inch length for every cable
• Easy to connect: cut the strip on the cut line, slide the LED light strips under the clips and close the clasp well to make a solid connection
• 4 pin 22AWG flexible copper wire allow you bend the wires whatever angle you require
• No need welding or soldering; one year warranty
