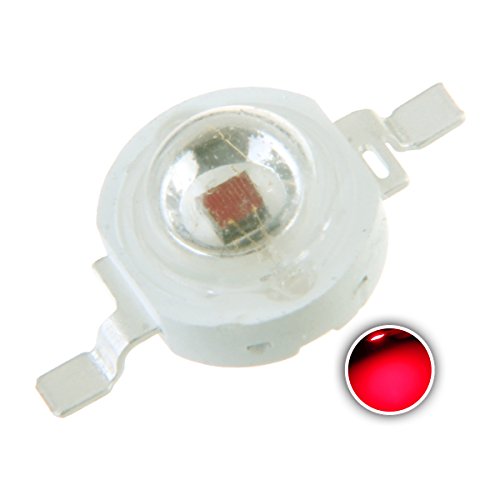

 Super Bright Intensity SMD COB Light Emitter Components Diode 3 W Bulb Lamp Beads DIY Lighting')){kind=link}
Specification:
Quantity: 10 pieces / Pack
Brand: Chanzon
Power: 3 Watt (Max)
Emitting Color: Red
Recommended Current: 450mA
Forward Voltage: 2.0-2.4V
Luminous Flux: 60-70LM
Emitting Angle: 120-140 degree
With Double Golden Wire (99.99%) and Copper Frame
Kindly Reminder:
Constant current LED drivers are recommended for high power COB LEDs.
Working temperature should be less than 60 Degrees Celsius / (140 Fahrenheit) with a Heat Sink System.
Please refer to the positive (anode +) and negative (cathode -) sign on Leds.
Related Accessories:
Constant current LED drivers (450mA Plastic Case): ? Search B01N25KD4X on Amazon
Constant current LED drivers (450mA Aluminum Case Waterproof): ? Search B01MYBGU2X on Amazon
Constant current LED drivers (450mA No Case only PCB Board): ? Search B01MSANI4E on Amazon
LED Heat Sink Star Aluminum Base Plate: ? Search B06XKPNRWL on Amazon
Product Features
- 3Watt / Red / 620nm-625nm / 60LM-70LM / 45mil chips / 120-140 degree Emitting Angle
- Input(DC): 400mA-500mA / 2V-2.4V (Best Match with “Chanzon 450mA Constant Current LED Driver”)
- Integrated Chanzon High Quality,High Brightness Chip on Board / Double Golden Wire / Copper Frame)
- 50000 Hours Life Span (Working Temperature should be less than 60? (140?) with a Heat Sink System)
- Total Shipping Weight: 0.46oz / 0.013kg (Pack of 10)
Related Posts
Pro 300 Series Tactical Flashlight by Elite Tactical – Waterproof 1200 Lumen CREE LED Military Grade Search Light w/ Zoom for Brightest Spot Light and Flood Light – Black The Elite Tactical Pro 300 Tactical […] Posted in LED Flashlights
Streamlight 44900 Waypoint Spotlight with 12V DC Power Cord, Yellow Stream light waypoint 44900 pistol […] Posted in LED DC Bulbs
LE 33ft 100 LED Solar Rope Lights, Waterproof Outdoor Rope Lights, Red/Green/Blue/Warm White, Portable LED String Light with Light Sensor, for Wedding, Party, Decorations, Gardens, Lawn, Patio Energy ConservationWith built-in […] Posted in Rope and String Lights
3W Beads. Yikes! Tested with UPRTek CV600. Tested multiple of each kind.Natural White 4000-4500k – Horrible CRI at about 63, but it was at color temp stated. Definitely wouldn’t want to use this for anything unless you need yellow and green with a spike in blue.Blue 460-470nm – Peak at 458nm. Not in range.Royal Blue 440-450nm – Peak at 451nm. Package states 440nm. Not in range.Deep Red 650-660nm – Peak at 660. Package states 660nm.Full Spectrum 380-840nm – Peaks at 444nm blue. Not…
Works as expected, and much cheaper per unit to buy these along with Chanzon’s heatsinks and assemble yourself. Have purchased multiple sets of these chips after great success with the first batch. So far, every chip has worked perfectly. Mounted to the corresponding heatsinks also from Chanzon with a tiny dab of thermal compound (I used Céramique by Arctic Silver) and haven’t had any issues with the heat generated, although I am only driving them around 310mA using an LM317 (Chanzon specs 300-350). With the Chanzon star-shaped heatsinks, you could probably max them at 350mA without any trouble. (If you…
