SURFACE MOUNT INSTALLATION
Step1) Prior to installation. Please install two screws (furnished)into the junction box. Do Not drive screws completely to the end of the junction box.
Step2) Connect supply wires to wires in fixture wiring box with proper size wire nuts or push wires into “push-in” connector. Connect white to white, black to black, and green or bare copper wire to bare copper wire.
Step3) The ground wire at the service junction box may need to be secured to a ground screw.
Step4) With a Phillips screwdriver, attach the disk light tightly to the j-box.
Step5) Complete the installation by twisting the diffuser on the disk light aluminum enclosure and lock the diffuser in place.
Step6) The edge of the fixture and the ceiling use waterproof silicone to seal.

Product Features

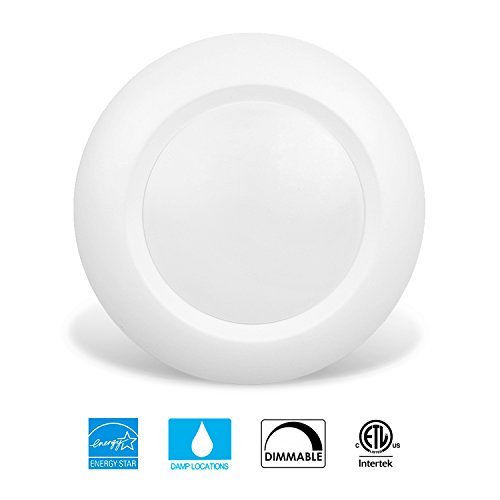

• 1.LED disk light makes it easy to upgrade your existing recessed lights to energy efficient LED or flush mount on junction box for new construction site to avoid using recessed can
• 2.Provides surface mount light for 6” junction boxes & fire rated boxes. It is suitable for use in dry, damp or wet location such as shower room/fire box around
• 3.120V operation with flicker-free TRIAC/ELV dimming down to 10%, >900 lumens of pleasant, low glare soft warm light.
• 4.ENERGY STAR，Saves up to 80% in energy consumption comparing to incandescent lamp, 100W halogen equivalent. cETLus Listed.
• 5.Easy installation and instant on make you feel convenient and different from what you used to have for light up your room.
