This durable universal mount combination tail light fits great with most RV’s, campers, trailers and boat.

FEATURES

– Durable design for years of use.

– Unique halo glow pattern when lit

– 7-function: stop, turn, tail, rear clearance, rear reflex, side marker, and side reflex

– The circuit board is sealed, IP68 waterproof

-Corrosion proof plastic housing, Compliant with DOT standards

Wire Connection Tips:
Left side: White Wire is the Ground; White+Yellow, front side works as high brightness; White+Brown, Three sides work, front side is low brightness.

Right side: White Wire is the Ground; White+Green, front side works and is high brightness; White+Brown, Two sides work, front side is low brightness.

Left tail light: 41 Diodes ( 24 Red diodes for halo light+6 Red diodes for front light+5 Red diodes for side light+6 White diodes for license Plate illumination )

Right tail light: 35 Diodes ( 24 Red diodes for halo light+6 Red diodes for front light+5 Red diodes for side light )

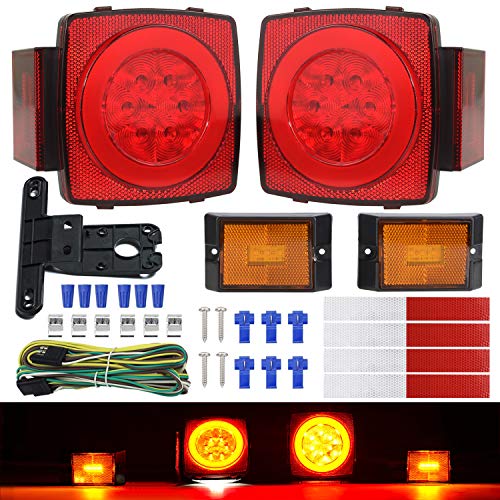

Package Include:
2x running/stop/tail/turn halo tail lights
2 x Amber Clearance Lights
license plate bracket and Mounting Hardware,
25ft wire Harness( 21.65ft length wire harness and 3.93ft wire harness )
4pcs reflective sticker

Product Features

• HALO Trailer Light Kit : Trailer tail light kits has everything you need, includes two stop turn LED tail lights(Unique halo glow and solid light pattern design, different from other trailer taillights on the market), two amber clearance lights, one 22 feet and one 4 feet wiring harness, license plate bracket, 4pcs complimentary reflective sticker.
• IP68 Waterproof and Submersible: There is no screw on the lamp shade , The circuit board is sealed, which means that water will not damage the diodes or circuit board, the drain hole design, which means no water and fog steam inside, the LED trailer lights are completely welded together, excellent tightness makes it be definitely waterproof and submersible.
• Compliant with DOT approved standards: The lamp shade of utility trailer light kit with corrosion resistant ABS material, 100% compliant with DOT approved standards
• 25ft wiring harness have more durable than the traditional copper coated aluminum wires and split Y-style color coded harness. Fully operable in inclement weather, these trailer lights are tough and durable for the long term.
• Widely Used: Widely applicable to 80 Inch width tractor, such as truck, trailer, boat, bus, lorry, van, caravan, snowmobile, etc. Please make sure wires connect correctly and no electronic short before underwater.
