Mini Remote Controller for Single Color LED Strip Lights, RF Dimmer for 12V DC LED Ribbon, Wireless Remote Control for Dimmable 3528 5050 Under Cabinet Puck Lights(Single Color)

LEDdistributors • 6 years ago

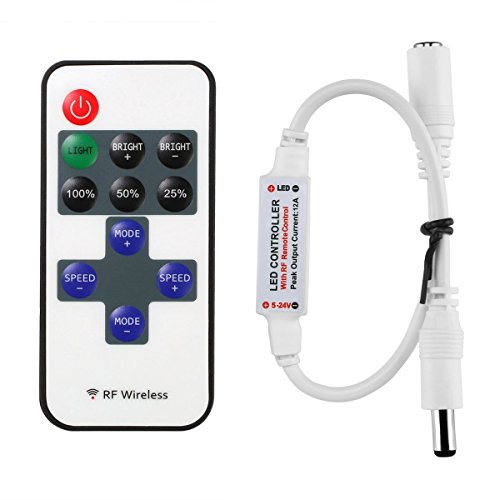

This is a 11 keys mini RF LED controller + Remote dimmer switch set, DC 5-24V 12A for single color 3528 5050 LED strip lights, LED under cabinet puck lights lighting bars ect.

WORKING MODES:
1). 1 TO 1 MATCHED: 1 remote controls only 1 receiver at the same time.
2). 1 TO MANY MATCHED: 1 remote controls many receivers at the same time.

HOW TO SWITCH BETWEEN THE 2 MODES
1). The default mode is 1 to many (synchronously), 1 remote can control many receivers at the same time. To switch to 1 to 1 control mode, leave the only one LED controller (receiver) powered on, press the buttons ‘SPEED +’ and ‘SPEED -‘ at the same time, until you see the lights flashing. Then this remote has been matched with the very receiver exclusively.
2). To switch to 1 to many control mode, have all the LED controller (receiver) powered on, press the green button with ‘LIGHT’ on it, until you see the lights flashing. Then this remote has been matched with all the receivers connected.
3). 1) and 2) can be reversed repeatedly according to your needs.

SPECIFICATION

Dynamic mode: 8 modes
Dynamic speed level: 10 levels
Lighting brightness level: 10 levels
PWM grade: 256 grades
Smooth dimmer effect: Yes
Working voltage: DC12-24V
Output current: Peak 6A
Remote frequency: 433.92MHz
Remote distance: >10m in open area
Battery: 3V CR2025 battery
