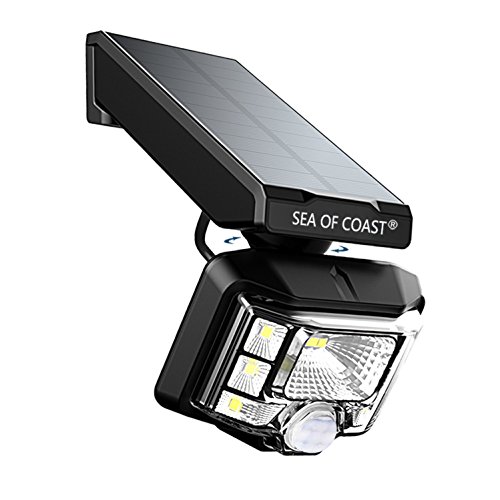

Functional Mode
The solar panels are synthesized using single crystal silicon, and the light conversion rate is as high as 23%.
Usually, in the case of sunlight, the solar energy is fully charged in just 8 hours. The irradiation time is 12 hours or more. You don’t have to worry about the nighttime lighting time is not enough.
The solar light remains off when there is no motion transition within 4 meters of the attachment.
The solar spotlight is equipped with a motion sensor that automatically turns on dim light at sunset and turns to highlights when motion is detected. After that, the light will return to dim light
20 seconds when no action is detected. The light will automatically turn off and charge the battery again at sunrise.

installation
Step 1: Mounting bracket
Use a power drill (not included) to create 3 holes on the mounting surface of your choice. Gently tap the three included wall plugs into the holes and secure the mounting brackets into the holes using the 3 screws provided.
Note: It is recommended to install at 2.0-2.5 meters (6.5-8.2 feet) high.
Step 2: Open Spotlight
The switch is located on the back of the lamp holder. Press the switch and completely cover the solar panel with an opaque object. Test it and make sure the spotlight is on
Step 3: Install Spotlight
Install the spotlight on the mounting bracket. Adjust the lighting angle as needed.

product manual
Solar panel: 5V, 1.22W
Lithium-ion battery: 4.2V, 2000mAh
Number of LEDs: 8pcs
Detection distance: up to 5 meters
detection angle: 120 degrees
Installation height: 2.0-2.5 m (6.5–8.2 ft)
switch: ON/OFF
Material: ABS plastic
Working temperature: -10~ + 50°C
waterproof: IP65
Product size: 184.2 * 98.6 * 94.9 mm
Net weight: 272 g

Product Features

  • 【EASY TO ADJUST THE ILLUMINATION ANGLE】 – With 360 degree ball head design, you can get all-round illumination and sensing angle, white high sensitivity infrared sensor,Can meet different lighting angles. When the sensor detects motion at night, the spotlight switches from dim to high light
  • 【ADVANCED SOLAR TECHNOLOGY】 – Ultra-bright and long working hours Compared with other common 4 or 12 LED solar lights, we designed 8 LED lights, which are brighter than 4 LEDs and work longer than 12 LEDs
  • 【PRECISION INSTALLATION LOCATION】- Suitable for front door, back door, outdoor door, deck area backyard, balcony railing, Entrance garage, fence, driveway, Garden, path, deck, dock, fence, stairs, aisle and other dark areas Lighting to increase safety
  • 【EASY TO REMOVE AND INSTALL】 – Use a single mounting bracket, the mounting bracket is pre-drilled into the wall, and then the solar light is installed into the bracket. No need for complicated wiring, spotlights are easy to install and remove
  • 【WARRANTY -12 MONTHS】 – COSA OF COSAT upgrades the solar light IP65 waterproof, fully protects the circuit and battery, and has a service life three times that of other products. LED lights have passed FCC certification
