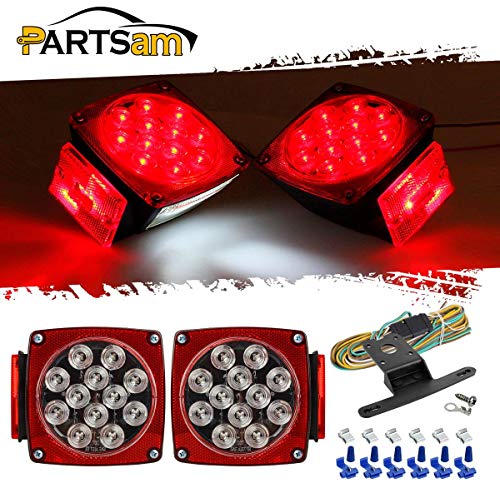

Submersible Completely Sealed Trailer Boat LED Stop turn tail License plate Lights Kit

Application: Add or upgrade the lights on boat, snowmobile, camper, or utility trailer

Features:

12V LED Trailer Light Kit, Clearance

Functions as Stop Turn Tail Rear / Side reflector Side Marker and License Illuminator (on left).

For under 80″ wide application

Acrylic lens is screwed on to the housing

Left side has 12 red square LED ( Stop, turn & tail) , 4 red round LED ( Side marker), and 5 white round LED (License)

Right side has 12 red square LED ( Stop, turn & tail) , 4 red round LED ( Side marker)

Kit includes 25″ trailer wiring harness, 4″ trunk connector, license plate bracket and mounting hardware.

Comes with Ground, Tail and Stop Turn 3 wires(high low brightness)

Light dimension: 4 9/16″ h * 5 1/16″ w * 2 3/4″ d

High visibility safety lights are easy to mount

Includes one pair multi-functions tail lights, parts pack with all fasteners and commectors needed for installation

low heat, low current, high reliability, faster on and off and you can install as many LED lights on your boat and trailer as you want!

Wire Connection Tips:

Left side: White Wire is the Ground; White+ Yellow, front side works and is high brightness; White+ Brown, THREE sides work, front side is low brightness.

Right side: White Wire is the Ground; White+ Green, front side works and is high brightness; White+Brown, TWO sides work, front side is low brightness.

Tips: There is one more white light on the left side.

Product Features

• 5-1/16″ long x 4-9/16″ tall x 2-3/4″ deep; Trailer kit with 2 stud mount waterproof LED tail lights; corrosion-resistant license-plate bracket; 25′ wiring harness; stainless steel mounting hardware; 2-stud mount on 2″ centers
• 2 Clear/Red, waterproof, stud-mounted LED tail lights for trailers less than 80″, Driver’s-side light includes license illuminator
• For this Red submersible LED trailer light kit, Right light has 16 LEDs (12 face, 4 side); Left/streetside light has 21 LEDs (12 face, 4 side, 5 bottom)
• Left side: White Wire is the Ground; White+ Yellow, front side works and is high brightness; White+ Brown, THREE sides work, front side is low brightness; Right side: White Wire is the Ground; White+ Green, front side works and is high brightness; White+Brown, TWO sides work, front side is low brightness
• Square trailer light serves 7 functions: Stop light, Turn signal light, Tail light. Rear reflex reflector, Side marker light, Side reflex reflector, License plate illuminator(only for LH Side/Driver Side)
