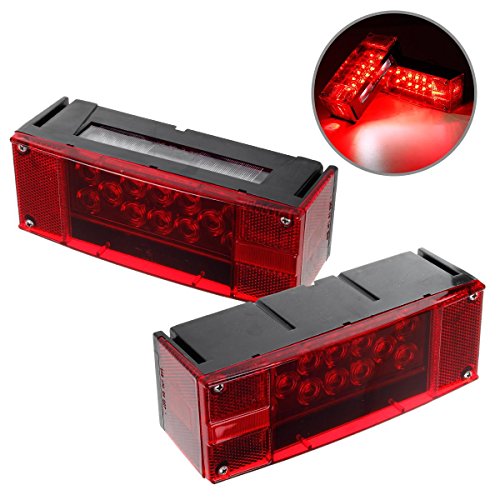

Partsam One Pair Over 80″ LED Waterproof Combination Trailer Boat Tail Lights Stud Mount.

Special Features:

These lights can be used for trailers over 80″ wide and waterproof.

This light is DOT approved.

Universal stud-mount stop/turn/tail lights for over 80″ wide applications.

Lights are 6-function: stop, turn, tail, rear reflex, side marker, and side reflex.

LH light is same as RH plus license illumination.

White wire is ground, yellow or green is for tail/turn, and brown is for running lights.

All-weather molded plastic housing and durable protective lens.

Dimension: 8.07” x 2.90” x 2.86” L*W*H).

Wire Connection Tips:

Left side: White Wire is the Ground; White+ Yellow, front side works with high brightness; White+ Brown, Three sides work, front side is low brightness.

Right side: White Wire is the Ground; White+ Green, front side works with high brightness; White+Brown, Two sides work, front side is low brightness. Tips: There is one more white light on the left side.

Product Features

• Partsam One Pair Over 80″ LED Waterproof Combination Trailer Boat Tail Lights Stud Mount.
• Lights are 6-function: stop, turn, tail, rear reflex, side marker, and side reflex.
• Universal stud-mount stop/turn/tail lights for over 80″ wide applications.
• All-weather molded plastic housing and durable protective lens.
• White wire is ground, yellow or green is for tail/turn, and brown is for running lights. Dimension: 8.07” x 2.90” x 2.86” L*W*H).
