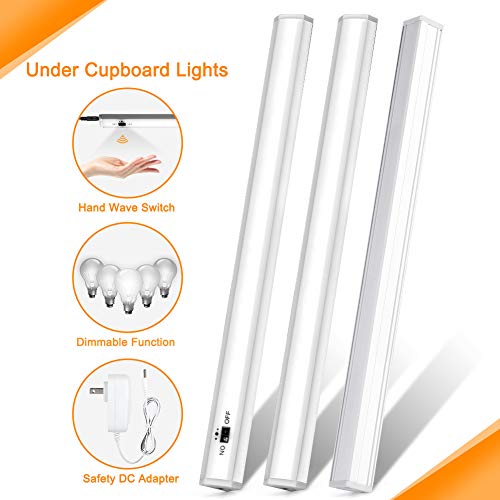

【 Wave Switch Sensor Function 】 This closet Light is auto-on/off by waving your hands under the sensor light.smart sensor chip with passive infrared (IR) technology, reliable performance and high sensitivity, accurately detect your hands.Using this smart under cabinet lighting and keep your hands free,no need to put down theProduct specifications:
Lamp Bead Specifications: 2835
Number of beads: 108 (single: 36)
Input voltage: AC: 100-240V
Output voltage: DC: 12V
Material: 6063 aluminum + PC
Lumens: 1200lm
Power: 12W
Working temperature: -30 ° C ~ 40 ° C
Hand sweep control distance: 12–15CM
Dimensions: length 30CM, V-shaped right angle 18.5 x 18.5CM, mounting surface 26.5CM
Package weight: 360g ± 10g
Packing size: 340 x 70 x 70 MM
Color temperature: 6000K
Adapter: US plug

Installation method:
Method 1: Using a 3M sticker, attach it to the black of the lamp body, attach it to the nearly cleaned sticker, and connect the lamp body to the
DC3.5 adapter cable. Method 2: Fix the lamp body transparent card holder with screws and insert the lamp body into the transparent card
holder. Connect the lamp body with a DC3.5 adapter or a connecting cable.

Operation method:
1. When opening or closing, place your hand under the PIR sensor switch to swing left and right, that is, the controller can be turned on or off.
2. Brightness adjustment: After opening, the hand stays under the PIR sensor switch and remains stationary.Adjust the brightness according to
your needs.The dimming range is 3-100%.
3. Cabinet lights has a memory function. When turned off again after startup, the brightness is adjusted when it was last turned off.

Package Include:
3x cabinet light body
1x power adapter (1.5M)
6x 3M sticker
6x plastic line card
2x DC3.5 connection cable (0.5M)
2x DC3.5 mini connector
6x V buckle
6x screw
1x manual

Product Features

• 【 Wave Switch Sensor Function 】 This closet Light is auto-on/off by waving your hands under the sensor light.smart sensor chip with passive infrared (IR) technology, reliable performance and high sensitivity, accurately detect your hands.Using this smart under cabinet lighting and keep your hands free,no need to put down the goods or wipe your hands !NOTE: The signed light tube must connect to the DC adapter to work as sensor!
• 【 Dimmable Brightness Whatever You Want 】 Unlike the regular cabinet lights,which just provide two or three dimming selections,our under cupboard lights can be adjusted the brightness from 30% to 100% ,low light to strong light.You can dim the light by holding your hands under the sensor light tube.Choosing the most comfortable brightness,the best optimum to your eyes.
• 【 Safe to Use & Working Widely 】 The working voltage of this under counter lighting is DC 12V,which is touchable and safe for children,without any electric shock risk.Due to the great heat dissipation function,no worry about burn injuries when you get close to it.Our cabinet light is a good ideal for kitchen cabinet,dining room,shelf garage studio office etc.
• 【 Multi-Ways to Connection and Easy to Install 】 The under cabinet LED come with mini connections and cables,which means different ways to connect according to the area of your house.If you like lighting a large area of the kitchen,then choose the cables to connect,otherwise the mini connections are a best selection for your warm small galley.We also provide double-sided tape,tape the light on any clean and smooth area or use the mounting screws,buckles and plastic line cards.
• 【 Purchase Warranty 】 Welcome to purchase EECOO under cabinet lights. Durable led chips makes the lights have more than 50,000 hours lifespan. 1 years warranty at normal use If any questions about product,do not hesitate to contact us,we provide not only technical support but also high quality customer service !
