Features
Continuous length, packed with 5 meter
Cuttable every 3 LEDs along the cutting marks, according to requirement.
Long life span 50,000+ hours
Flexible ribbon for curving around bends
Completely smooth and even light spread, solving the uneven luminous problem
Ultra-bright but running at low temperature
Low power consumption
44key
Input voltage: 12V DC
Max output current:2A/ each channel
Maximum output power: 72W
Control mode:IR
Dimming mode:PWM
Output: 12V DC, 3 * 2 A
Connect mode: Common Anode
Work temperature: -20~60 degree
Control distance: 5M (must be a certain degree to aimed at the ir receiver and without any obstacles)
Item color: Black
Shell material: Plastic
Item dimension: 5.7 * 3.5 * 2.2cm/ (including 20cm/ 7.87in and 22cm/ 8.66in cable)
Remote controller dimension: 12.5 * 5.5 * 0.7cm/ 4.92 * 2.17 * 0.28in
item weight: 70g/ 2.46oz
Package weight: 92g/ 3.24oz
Power supply
Output: 12V
Input: 100-240VAC, 50/60Hz, 1.5A
Power consumption: 72W
*DC port: 5.5 x 2.5mm (outer diameter x inner diameter)
Adapter dimension: 104 x 50 x 30mm
Total lenght: 230cm (including power cord)
Weight : 272g

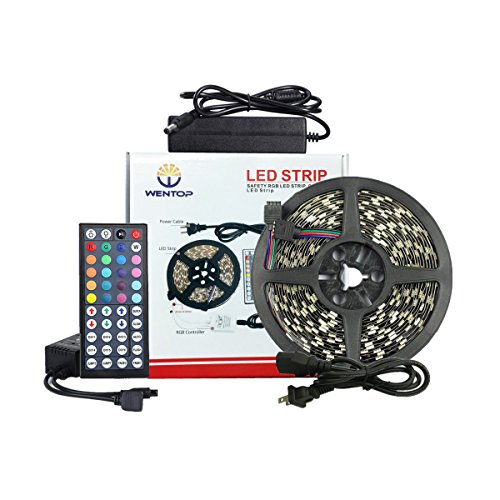

Package included
1 x 5M led strip light
1 x Signal receiver
1 x 44key Control board (with battery)
1 x 12VPower supply
Application
Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile or contour lighting
Tips
the connector between the light strip and ir receiver must be arrow to arrow.Please advise if you have question.

Product Features

• This is a standard kit. The adaptor is UL listed. and they can load 16.4ft only. Please don’t increase the strip light. Come with RGB LED strips, remote controller, UL listed AC adaptor and connectors. All in black and easier to hide. No more accessories are required.
• Don’t leave them on the spool when you going to test it for more than 2 mins, it easy to lead to overheating.The ventilation must be ensured.These lights need an excessive amount of airflow for cooling.
• 44key controller contained a DIY fuction , Press “DIY” botton and then just long press the up/down button until desired color show up .Also it have dimming and brightness control.Cuttable and linkable. Color changing LED Strip Lights can be cut to every 3 leds, its 3M adhesive tape backing can be fit many dry flat surface
• It’s can be change the color via the controller.It have White/Red/Green/Blue/Yellow and more option.Very suitable for indoor lighting and decor. Such as kitchen, under cabinet, dining room, bedroom, garden, patio, balcony, party, wedding etc.
• Remarks: Comes with a full 12 month warranty, 30 days money back guarantee.If the power adapter or other accessories do not work, please contact us for help. Connect the load and power lines, make sure all connection right before power switched on; Insure there is no obstacle between the IR controller and the receiver when operating; Take off the plastic sheet of remotes battery before using
