10 x 0.5W SMD 2835 heads
3000K Warm white LED
80 Total Lumen output
16 Lumen per Watt
120 Degree beam angle
Cool Touch

80 CRI (Color render index)
60,000+ Hrs L70 lifespan
0.8 Power factor
<6 Step MacAdam Ellipse

Non-dimmable

Class 2 double insulated no earth
DC Output
100V – 240V 50/60Hz 0.3A max
DC Output
Parallel wiring
Constant voltage 12V DC 6W max wet location driver included
1kV surge protection

Construction, Dimension & Application
Polished stainless steel & clear grid patterned polycarbonate lens
Recess in landscape designs, patios, decks, skirting board, stairs, kitchen plinths, and bathrooms
Wet location & IP67 rated
IK02 (Impact resistance rating)
Fixture can be walked over once installed
Suitable for exterior or interior installation
Recessed mount installation
The recommended operating temperature is -31˚F to 104˚F (-35˚C to 40˚C)

Height: 0.02″ (0.45mm) Width: 1.2″ (30mm) Depth: 1.2″ (30mm)
Cutting hole size: 0.87″ (22mm) Diameter Minimum cavity depth: 1.4″ (35mm)
Weight: 1.06lb (0.48kg)
Black cable, 5m extension cable from US certified plug driver to LED head units, 10 x head daisy chains, 950mm & 50mm. Maximum 10 heads
Not applicable

Certification
This fixture is certified to applicable standards and requirements by ETL
L70 lifespan: 60,000+hrs
This fixture and its components are RoHS Compliant
This fixture complies with all relevant FCC standards
3 year warranty

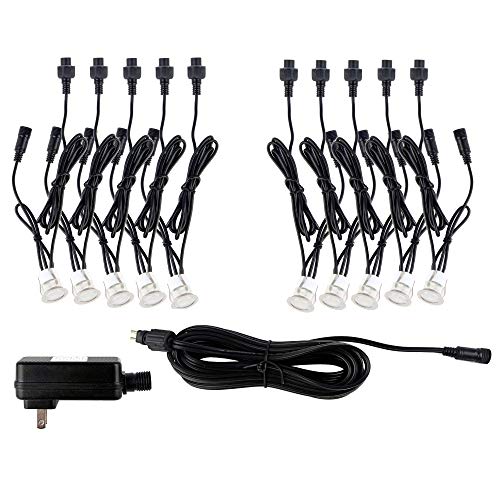

Contents
Head loom x 10
Connection cable
Plug-in driver loom
15/16″ paddle drill bit
Instruction manual

Pack
Unit pack quantity: 1
Unit pack dimension: Height: 4.7″ (12cm) x Width: 6.5″ (16.5cm) x Depth: 5.9″ (15cm)
Unit pack cube: 0.106cuft (0.003m3)
Unit pack weight: 2.07lb (0.94kg)

Product Features

• INSTALLATION – Supplied With A 15/16″ Paddle Drill Bit , Installing This LED Kit Couldn’t Be Simpler
• QUALITY – 3 Year Warranty. This Fixture Is Certified To Applicable Standards And Requirements By ETL. This Fixture Complies With All Relevant FCC Standards. L70 Lifespan: 60,000+Hrs
• APPLICATION – Recess In Landscape Designs, Patios, Decks, Skirting Board, Stairs, Kitchen Plinths, And Bathrooms
• PERFORMANCE – 10 X 0.5W 80 Lumens 16 Lumen Per Watt, 3,000K Warm White, Non-Dimmable IP67 Wet Location Rated
• CUSTOMER SERVICE – We Offer A High Level Of Customer Service Combined With A Friendly, Yet Professional Approach. We Pride Ourselves On Supporting Our Customers At Every Stage, And Work Hard To Ensure You Always Receive A First Class Service
