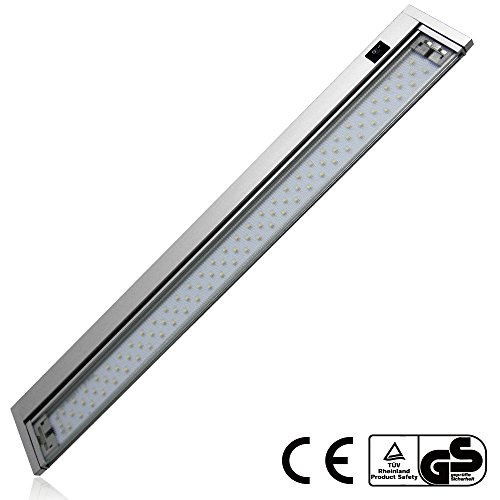

“This multi-function LED cabinet light is perfect for home lighting and commercial lighting, such as, bookcase, cabinet, wall lamp,
doorway, attic, inner room, basement, garage, cellar, wardrobe, cupboard, hotel safes, tents, car compartment and so on.
10W LED mirror 380lm high brightness and 3000K color temperature.
120° beam angle and 135 degree rotation angle can meet your needs of various.
110 AC input voltage and 10W power consumption make it a perfect company for life.
Easy installation:
Distance measurement:
There are 2 mounting holes on the backside and 2 on the top. First, decide which 2 you would like to use; then calculate the length and install the screws.
Connecting circuit:
there are 6 binding posts on the backside of the wall lamp; the left row is input binding post and the right row is output. L represents live wire and N for null line,
the medium line is ground electrode (we have circuit connection picture for reference).
Install the lamp:
Just put the lamp on the installation screws gently without any additional accessories required
Specification:
Voltage: 110V
Wattage: 10W
Current: 54mA
Size: 23.03(L)*3.35(W)*1.14(H)inch
Beam angle：120 degree
Waterproof rating: IP20
Lumen: 380lm
Color temperature: 3000K
Life span: 30,000
Weight: 700g
Package included:
1 x warm white LED cabinet light”
Product Features
- Wide application: used as mirror light, cabinet light or local lighting fitting
- Material: high quality Aluminum housing, toughened glass frosted lens and ABS switch
- Easy installation: hanging slot in Aluminum body, save space and convenient to be assembled and disassembled
- Adjustable: assembled with rotation axis, irradiation angle (about 135 degree) is adjustable to your special need
- 380lm High Brightness 3000K color temperature, 120° beam angle 110 AC input voltage and 30,000 hours life span
Related Posts
led world 100W 380-840nm Full Spectrum LED Grow Chip Module Light High power led lamp
Product Features
Voltage: 30-36V […] Posted in LED Grow Lights
Meerkatt (Pack of 20) 3.8 Inch White 6 LED Side Clearance Marker Light Indicators Lamp Tail Back Up Rear Reverse Trailer Truck Cap Camper Buses Pickup Van ATV Lorries Ambulance Boat 12v DC Model TK12 (Pack of 20) White 3.8" Inch 6 LED […] Posted in LED DC Bulbs
LED Headlight Bulbs, BOKIN All In One H11(H8, H9) LED Conversion Kit with 3000K(Warm Yellow)/6000K(Cold White) Double Color Temperature 10000 Lumens – 3 Year Warranty Why You Need Double Color Temperature […] Posted in LED Headlights
Good Light Source for Kitchen I bought a few of this fixtures for a kitchen remodel. They made the kitchen look much nicer and brighter. It is sort of confusing when I opened the box but I figured very quickly with the help from this seller.I picked this light because they do not require discrete “drivers” which step down and rectify 120 Volts AC to a lower 12V DC voltage, which is required by most LED lights. I do want to remind people that this is not a plug-in light, so hard wiring is necessary…
Not for US market Manufactured for European markets per CE marking. “Hardwired” description is wrong and misleading. Exposed line voltage wiring is direct code violation in USA and Canada per National Electrical Code. The fixture installation design does not meet the code. That is a shame, because otherwise, it could be a quite nice, inexpensive product. It isn’t UL listed for safety standards. I didn’t see the UL label, nor there is any marking of certification by a nationally recognized testing…
Slim and stylish Direct wire LED under-cabinet light fixtures are usually thicker than their plugin style counterparts. The direct wire units are thicker because they need space to make up the wiring connections inside of the fixture and sufficient thickness on the casing to accommodate the corresponding wire connector.However, this direct wire light still looks slim enough for me, and hides very well under my cabinet. The direct wiring also makes the installation more flexible. The light arrives…
