Specifications

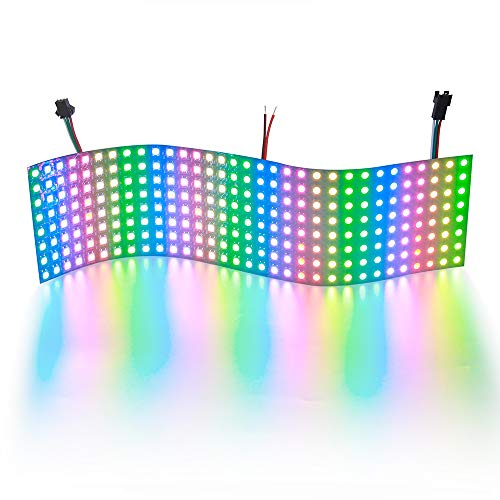

Model: WS2812B 8*32 LED Matrix Panel
Light source: SMD 5050 RGB
IC: WS2812B (WS2811 IC built-in RGB chip)
LED Quantity: 8*32 256 Pixels
Width: 3.15in / 8cm
Length: 12.59in / 32cm
Thickness:0.12in / 0.3cm
FPCB colors: black
Gray levels: 256
Emitting Color: Full color (24-bit)
Plate: soft copper
Beam Angle: 120 °
Working voltage: DC 5V
Max power: 75W; 0.3W ± 0.01% per LED
Max Current: 15A
Port scanning frequency reaches to 2KHz/s
Data transmitting speed is up to 800Kbps
Working Life: >50,000 hours
Working temperature:-20°C~40°C

Kindly note
1) You must use a 5V DC power supply to power these strips, do not use higher than 6V or you can destroy the entire LED panel.
2) We don’t recommend to turn all the LEDs on full white all the time.
3) If need be, please download specification sheet on the description page or contact us.
4) Please NEVER bend it to acute angle or repeaptly curve it.

Package
1X 8*32 256 pixels WS2812B LED matrix screen(without power and controller)

Product Features

  • 【Individually Addressable LED】WS2812B 5050 RGB LED Matrix. Each pixel has R/G/B three primary color, achieve 256 brightness display and 24-bit 16777216 colors full color display. You can control them individually and set them to any color or animation you want.
  • 【Wide Compatibility】It can be programmed with Arduino, Raspberry Pi, Adafruit NeoPixel Library, Fadecandy, T1000S etc. It can also be controlled by SP105E SP108E pre-programmed app controllers and ALITOVE music sync addressable LED bluetooth controllers. (ASIN: B07H15ZC8D )
  • 【User-friendly Design】With 3pin JST-SM connectors, you can extend the LED panels by hooking up one by one without soldering. Separate power/ground wires for injecting power in case of voltage drop. Flexible design, you can gentely bend it.
  • 【Wide Application】 It can be used to make led screen, led wall, advertising board and widely applied to hotel, KTV, bars, Outdoor advertising signs, wedding party lighting, home decoration, Christmas or wedding party decoration etc.
  • 【How It Work】Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate. Built-in electric reset circuit and power lost reset circuit. Cascading port transmission signal by single line. Scan frequency is of 2KHz. Send data at speeds of 800Kbps.
