CAUTION

  • Use 12V DC Constant Voltage Input Only. DO NOT USE AC INPUT!
  • Maximum in Series Connection Quantity: 50 pcs
  • Do not Cut or Rejoin Wires while Product is Connected with Live Power Source
  • Red Color Wire (+) anode and white Color Wire (-) cathode

SUGGESTED POWER SUPPLY

  • 12V DC Constant Voltage Power Supply
  • Consider 85% specified capacity of power supplies for extended lifespan while choosing LED Driver, DO NOT OVERLOAD

STRUCTURAL INFORMATION

  • ABS+PC Shell
  • Shell Dimension: 68*14*12 mm (Including lens Height)
  • IP Grade: IP65 (Ingress Protection 65: Dust-tight and protected from moisture challenges up to jetting water. DO NOT USING IN CONTINOUS IMMERISON SITUATION.)
  • Cable Length Between 2 Units: 80 mm
  • LEDs’ Supporter: PCB
  • 50pcs Units Per Pack (you can cut into any units you want to)
  • 3M Adhesive tape

OPTICAL INFORMATION

  • CCT (Color Temperature): 2800-3200K
  • 3Pcs 2835SMD LEDs Per Unit, 50-66lumen/unit
  • CRI (Color Rendering Index): 80
  • Beam angle: 160°, Secondary Lens Diffusing design

ELECTRICAL INFORMATION

  • Maximum in series connection: 50 pcs
  • Input Voltage: 12V DC
  • Rated Power: 0.72W/Unit±10% W
  • Rated Currency: 60mA/Unit
  • Driver Compatible: 12V DC Output Constant Voltage Driver
  • Wire: UL, AWM 2648 300V/ 80℃ 18 gauge Cable (Red+, White-)

Product Features

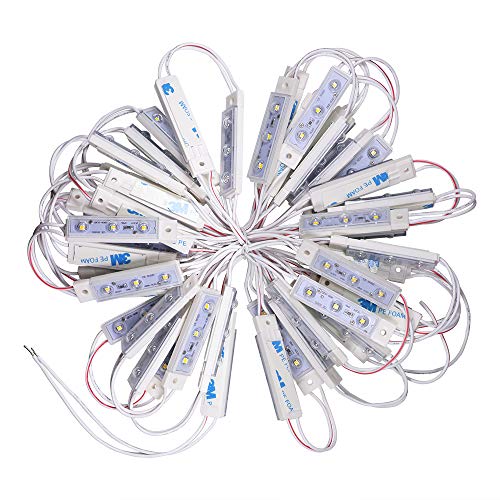

  • Ultrasonic welding 3 LEDs module bulb, Max. 50pcs in series connection (others’ only 20pcs)
  • 12V DC input, 60mA/unit current, 0.72Watt/unit±10%, Total Length: 24ft. Weight: 0.35oz/unit
  • Warm white color, CCT: 2800-3200K, 160° View angle, 50-66lm/unit, IP65 waterproof
  • 2835 SMD 3 LEDs/unit, ABS+PC Shell, 18-gauge wire red (+) anode and white (-) cathode
  • Fasten by 3M double side adhesive tape or screws (screws not included)
